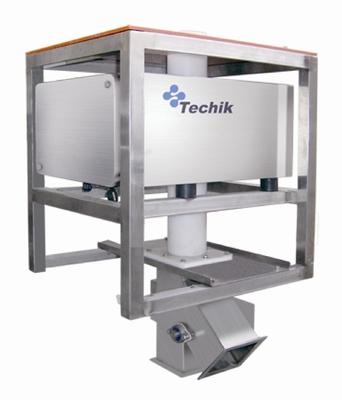

Classtic Free Fall Metal Detector With Rejector for Flour
The first digital gravity fall metal detector in China, suitable for the powder, granule or other forms of products.
Metal Detector IMD-I-P Series
1. Compact design, small occupied space
2. Rapid rejecting mechanism, to reduce the waste of the materials
3. In line with the GMP requirements, easy to install and to clean
4. Circuit design is more stable than traditional analog machine and also a higher sensitivity
5. Special design of the mechanical structure, to effectively avoid the external interference like vibration, noise, product effect, etc
|
Model |
IMD-I-P |
||||||
|
Detection Diameter(mm) |
Detection Capacity t/h2 |
Alarm Mode |
Pressure Requirements |
Power Supply |
Main Material |
Sensitivity1Φd(mm) |
|
|
|
Fe |
SUS |
|||||
|
75 |
3 |
Automatic Flap Rejecter |
0.5Mpa≥ |
AC220V (Optional) |
Stainless Steel (SUS304) |
0.5 |
1.2 |
|
100 |
5 |
0.7 |
1.5 |
||||
|
150 |
10 |
0.8 |
1.5 |
||||
Note:
1. The technical parameter above namely is the result of sensitivity by detecting only the test sample on the belt. The sensitivity would be affected according to the products being detected, working condition and also the different positions the metal mixed with.
2. Detecting capacity per hour is related with product weight, the value of the table is according to the density of water (1000kg /m3).
3. Requirements for different sizes by customers can be fulfilled.
Characteristics:
Gravity fall metal detection systems made first in China provide the significant improvement in stability and sensitivity compared to traditional analogue device. With special mechanical structure design, the detector can reduce interference of external factors including shaking, noise, and product effect.
This machine owns high detection sensitivity. It not only uses doublechannel detection to have stronger ability in controllingproduct effect, but is made by stainless steel to be sanitary and good corrosion resistance. All systems are designed for minimized height allowing them to be installed in applications when space is restricted.
Case Reference
Q:Are you a factory or trading company?
A:Techik Instrument (Shanghai) Co., Ltd is the leading manufacturer of X-ray inspection, check-weighing and metal detection system with IPR in China and pioneer in indigenously developed Public Security.
Techik designs and offers the art products and solutions to meet the demands of global standards, features and quality. Fully comply with CE, ISO9001, ISO14001 management systems and OHSAS18001 standard which bring you great confidence and reliance.
Q:What's your main products?
A:Our main products include metal detector and x-ray inspection machine for contaminants inspection, checkweigher for weight check, weight sorting machine for product grading and optical color sorting machine for impurity sorting.
Q:What’s the warranty of your machines?
A:One year warranty and life-time service
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)One-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course, either in Techik Shanghai or through the internet
Q:How about the lead time?
A:Metal detector (Standard): 17 working days
Check weigher (Standard): 17 working days
X-ray inspection system (Standard): 1~2 months
Weight sorting machine (Standard): 1 month
Optical color sorting machine (Standard):2 months
