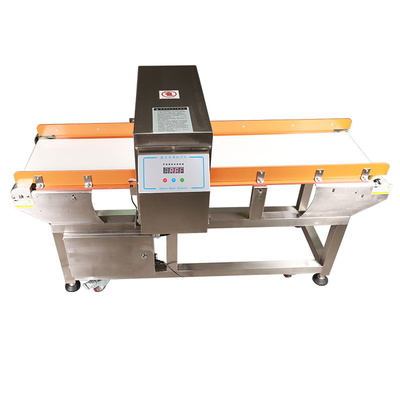

HB-800H Food Metal Detector This type of metal detector is an all-metal detector, which can detect all common metal impurities in the food processing industry, also known as: gold detector, metal detector, metal detector. Its circuit and appearance design have absorbed advanced technology of similar products from Japan and the United Kingdom. The product has stable performance, high cost performance and exquisite appearance, and is well received by users.
Applicable industry:
Food, aquatic product processing, toys, clothing, shoemaking, chemical, leather, knitting and other industries detect metal impurities mixed in products or raw materials during production and processing. Such as: iron and non-ferrous metal objects (iron, copper, aluminum, stainless steel and other non-ferrous metal particles can be detected)
Features:
1. It adopts dual-channel signal detection circuit combination technology, which has high sensitivity and high anti-interference ability.
2. With dual signal display function. When a metal object passes through, the signal level indicator will display different induction intensity according to the size of the metal.
3. The signal processing is completed by the digital circuit, the adjustment is simple, stable and reliable.
4. With product effect adjustment function, 10 levels of independent adjustment for ferrous and non-ferrous metals.
5. It has the function of leak detection. When multiple metal signals pass, the instrument will automatically detect the number of signals, and the actuator will not be missed when it moves.
6. When no detected object passes, the instrument is in sleep mode, and the detection is effective only when the object passes.
7. It can be used in conjunction with the assembly line to implement automatic inspection of the assembly line.
8. The detector adopts sound and light alarm and shutdown, which is extremely convenient and reliable to operate.
Related parameters:
Detection window height: 120mm. (Regular size: 100/120/150/200mm, other heights can be customized according to requirements, the higher the window height, the lower the sensitivity.)
Detection window width: 500mm.
Body material: all stainless steel production.
Sensitivity: Iron ball φ0.8mm-φ2.5mm
Non-ferromagnetic metals such as stainless steel 304 copper and aluminum ≥φ1.2mm.
Power supply: 220V 50Hz.
Power: 120W.
Alarm mode: sound and light alarm, and automatic shutdown.
Dimensions (length×width×height mm): 1600×840×1005.
