Note: metal detector tunnel size made by order, according to the max size of product.
check weigher weighing range from 3g to 50kg.

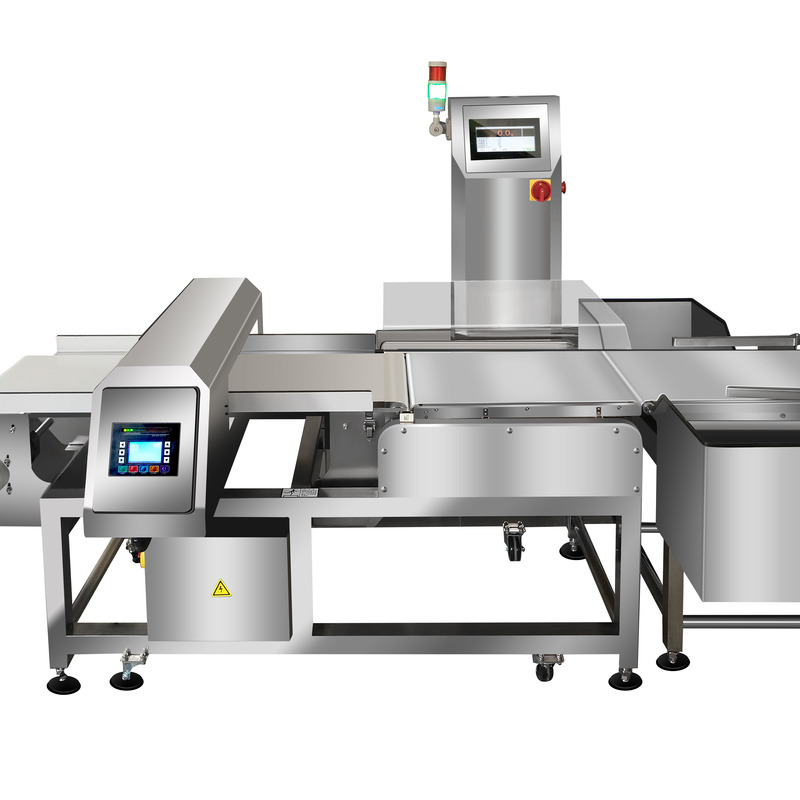

The combination into one system.
eg: MD 400*150 and CW-300 machine.
parameter:
(conveyor belt width: 350mm, passing height: 120mm, the passing tunnel/window size can be made by order.)
weighing range 3 kg, accuracy: 1g.
sensitivity: Fe: 1.0mm, SUS: 2.0mm (in the center of probe without produdct effect.)
1. Phase Adjustment for the reduction of Product Effect
2. High-speed DSP and algorithm for the accuracy and stability
3. Suitable for iron, stainless steel, copper, aluminum, lead and other metal
4. LCD panel with Chinese and English Language supported
5. Auto-learning function; capable of detecting frozen food (e.g. Dumpling or frozen fish), meat, rice, pickled foods etc.
6. Good adjustability from Product Parameter Memorizing Function for different products
7. Easy cleanup because of open frame design
8. Special belt design for the prevention of dislocation
9. Good cost-performance ratio
10. Stainless steel made, good at water-resisting
|
Catalog No. |
CW-300 |
|
Weighing Range |
5g-3000g |
|
Line Speed(m/min) |
5-85m |
|
Max Speed |
150 packages/min |
|
Accuracy |
±0.5g |
|
Weighing Device |
German Load Cell |
|
Conveyor Width ( working width ) |
300mm |
|
Operation |
LED Touch Panel |
|
Rejector |
Pusher Type or Flipper Type (optional) |
|
Power |
1P 220 V 50 HZ |
|
Rate |
280W |
|
Air Outlet Port |
8mm |
|
Weight |
110kg |
|
Height from the ground to the conveyor |
750±50mm(Can be customized) |
1. OEM Manufacturing accept.
2. We will reply you for your inquiry in 24 hours.
3. Free drawing for the product line.
4. Free testing on the sample.
5. Free video/picture before delivery
|
Q1. What is your terms of packing? test report/video/picture for for customer.
