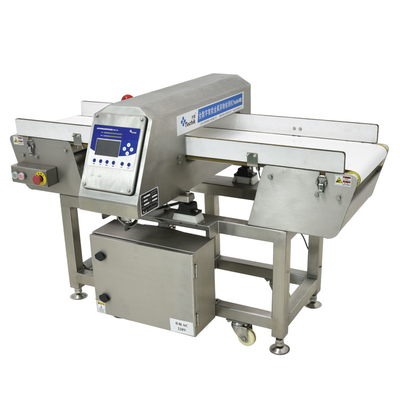

Food Product Metal Detectors
Application:
The metal detector is widely used in Aquatic products, meat and poultry products,
preserved food, flour products, dried fruit, vegetables , chemical materials , medical drugs, cosmetics, toys and primary products, etc..
Features:
1 Adapt phase discriminating technology that can effectively refrain product effect;
2 Adapt advanced DSP technology and leading intelligent algorithm which can improve
detection sensitivity and promote stability of the machine;
3 Be able to detect various metals like iron, stainless teel,copper and aluminum, etc;
4 LCD display, Chinese & English operating menu;
5 Self-learning function contributes to automatically choose suitable working parameters
according to different products;
6 Memory function for registering various products(Max: Over 52 Items);
7 Simple conveyor structure makes it convenient to disassemble and assemble;
8 Special design of conveyor belt to avoid deviation;
9 Made of stainless steel, fairly good waterproof ability;
10 Excellent quality with attractive price.
Model |
IMD-H |
||
Specifications |
4008,4012,4015,4018 |
5020,5025,5030,5035 |
|
Detection Width |
400mm |
500mm |
|
Detection Height |
80mm,120mm,150mm,180mm |
200mm,250mm,300mm,350mm |
|
Sensitivity |
Fe |
Φ0.5mm,Φ0.6mm,Φ0.7mm,Φ0.8mm |
Φ0.8mm,Φ1.0mmΦ1.2mm,Φ1.5mm |
SUS304 |
Φ0.9mm,Φ1.2mm,Φ1.5mm,Φ2.0mm |
Φ2.0mm,Φ2.5mm,Φ2.5mm,Φ3.0mm |
|
Belt Width |
360mm |
460mm |
|
Loading Capacity |
5kg~10kg |
20kg~50kg |
|
Display Mode |
LCD liquid crystal (FDM touch screen optional) |
||
Operation Mode |
Button input(touch input optional) |
||
Product Storage Quantity |
100 kinds |
||
Packing Form of the Product to be detected |
Standard plastic or cardboard, metal film (aluminum) and bulk |
||
Conveyor Material |
Food Grade PVC(PU and Chain Conveyor optional) |
||
Belt Speed |
Fixed 25m/min(Variable fixed belt speed according to different product, if need adjustable speed, the inverter to be optional) |
||
Alarm |
Alarm and belt stop(Alarm lamp and rejecter optional) |
||
Power Supply |
AC220V(Optional) |
||
Main Material |
SUS304 |
Note:
1 The technical parameter above namely is the result of sensitivity by inspecting only the test sample on the belt. The sensitivity would be affected according to the products being inspected, working condition and also the different positions the metal mixed with.
2 Requirements for different sizes by customers can be fulfilled.
Q:Are you a factory or trading company?
A:Techik Instrument (Shanghai) Co., Ltd is the leading manufacturer of X-ray inspection, check-weighing and metal detection system with IPR in China and pioneer in indigenously developed Public Security.
Techik designs and offers the art products and solutions to meet the demands of global standards, features and quality. Fully comply with CE, ISO9001, ISO14001 management systems and OHSAS18001 standard which bring you great confidence and reliance.
Q:What's your main products?
A:Our main products include metal detector and x-ray inspection machine for contaminants inspection, checkweigher for weight check, weight sorting machine for product grading and optical color sorting machine for impurity sorting.
Q:What’s the warranty of your machines?
A:One year warranty and life-time service
Q:How about your after-sales policy?
A:Timely, efficient, customer first
(1)One-year warranty (life-time service)
(2)Online support and professional video guidance
(3)Complete training course, either in Techik Shanghai or through the internet
Q:How about the lead time?
A:Metal detector (Standard): 17 working days
Check weigher (Standard): 17 working days
X-ray inspection system (Standard): 1~2 months
Weight sorting machine (Standard): 1 month
Optical color sorting machine (Standard):2 months
